Enclosure Cooling Unit (refrigerant/special specification)
ENC-NW2900L
| Cooling capacity(W)*1 | 2600／2900 |
|---|---|
| Rated voltage(V) | Three-phase 200V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 45 |
Inquiry
Download
ENC-NW2900L Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 2600／2900 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10 to 80 (no condensation) |
| External Dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 45 |
| Coating Color | Munsell 5Y7/1 light beige equivalent |
| Rated voltage(V) | Three-phase 200V AC |
| current consumption: rating (A) * | 4.0／3.5 |
| Current consumption *3 : Max(A) *5 | 4.5／4.3 |
| Starting current (A) | 31／30 |
| power consumption: rating (W) * | 760／930 |
| Power consumption *3 : Max(W) *5 | 1040／1230 |
| Cooling water/temperature range (℃) | 10～40 |
| Cooling water/flow rate (ℓ/min) | 8 or more |
| Cooling water/pressure (Mpa) | 0.2～0.5 |
| Noise resistance | Fast transient/burst immunity test level 4 |
| Vibration resistance | Frequency: 5Hz Total amplitude: 20mm |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | |
| refrigerant types | R134a |
| refrigerant filling amount (g) | 220 |
| Noise (dB(A)) | 約63／65 |
| External output | alarm output (non-voltage a contact: 250V 2A resistive load) |
| Display | Panel temperature/Error display LED/RUN LED |
Note)
cooling capacity: Outside temperature 35℃, inside temperature 35℃-40℃, water temperature 25℃,
This is capacity when the water supply rate is 8 liters/min.
(Measurement conditions: JIS-B-8615 air enthalpy method)
MAX value: Value when Use Area Temperature is the maximum allowable ambient temperature, use area Humidity 40% RH, and the water temperature is 40°C.
- Use power-supply voltage within ±10% of rated voltage.
- Be sure to read the instruction manual carefully before use and use it correctly.
External dimensions

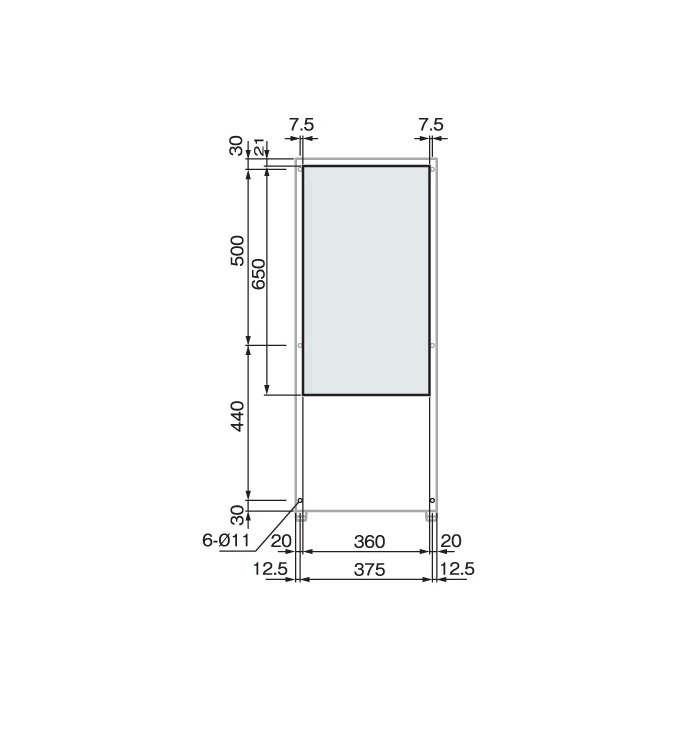

Diagram of Panel Cutout
Capacity characteristics graph
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
