Enclosure Cooling Unit (refrigerant/special specification)
ENC-AR1120EX-SUS-2
| Cooling capacity(W)*1 | 950／1100 |
|---|---|
| Rated voltage(V) | Single-phase 200V AC |
| Mounting Type | Ceiling Mounting |
| External Dimensions(mm) | H318×W600×D353 |
| Weight(kg) | 28 |
Inquiry
Download
ENC-AR1120EX-SUS-2 Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Ceiling Mounting |
|---|---|
| Cooling capacity(W)*1 | 950／1100 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20 to 50 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H318×W600×D353 |
| Weight(kg) | 28 |
| Coating Color | NSSC 180-HL finish |
| Rated voltage(V) | Single-phase 200V AC |
| current consumption: rating (A) * | 2.7／2.4 |
| Current consumption *3 : Max(A) *5 | 3.2／3.3 |
| Starting current (A) | 7.5/7.1 |
| power consumption: rating (W) * | 440／470 |
| Power consumption *3 : Max(W) *5 | 570／630 |
| Noise resistance | Fast transient/burst immunity test level 4 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | |
| refrigerant types | R134a |
| refrigerant filling amount (g) | 240 |
| Noise (dB(A)) | 約60／65 |
| External output | Cooling operation output/ alarm output (non-voltage a contact: 250V 2A resistive load) |
| Display | Panel temperature display LED/RUN LED |
Note)
cooling capacity: rating capacity value when outside temperature is 35°C and internal temperature is set to 35°C. (Measurement conditions: JIS-C-9612 air enthalpy method)
Use Area Temperature and humidity conditions for use area Humidity are not guaranteed to be met.
rating: Value when Use Area Temperature 35°C and use area Humidity 40% RH.
MAX value: The value when Use Area Temperature is the maximum allowable ambient temperature and use area Humidity is 40% RH.
- Use power-supply voltage within ±10% of rated voltage.

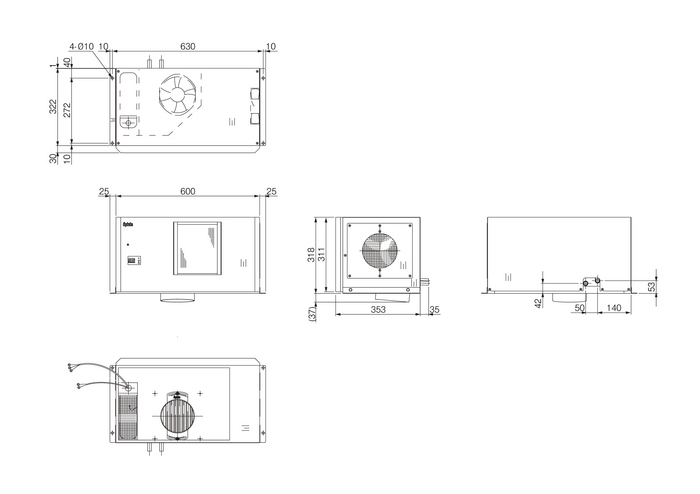

External dimensions
power supply line: Cord outside length 3m
alarm output line: Cord length outside the machine: 3m
Diagram of Panel Cutout
Capacity characteristics graph
*If you plan to use the FA cooler in environment close to the upper limit of the allowable ambient temperature, please consult with our sales representative.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
